Hanli HL Series Fiber Laser Water Chiller – 3kW to 30kW, 380V 60Hz

Hanli HL Series industrial water chillers are engineered for continuous-wave fiber laser cutting systems from 3kW to 30kW. Every model offered in this listing uses 380V three-phase, 60Hz power.

KEY FEATURES
• Dual-temperature, dual-circuit cooling for the laser source and optical cutting head
• Stable temperature control for demanding production environments
• Flow and over-temperature alarm protection
• Compressor thermal protection and circuit-breaker protection
• Compatible with major fiber laser source brands
• Suitable for laser cutting machines operating in the United States

AVAILABLE MODELS

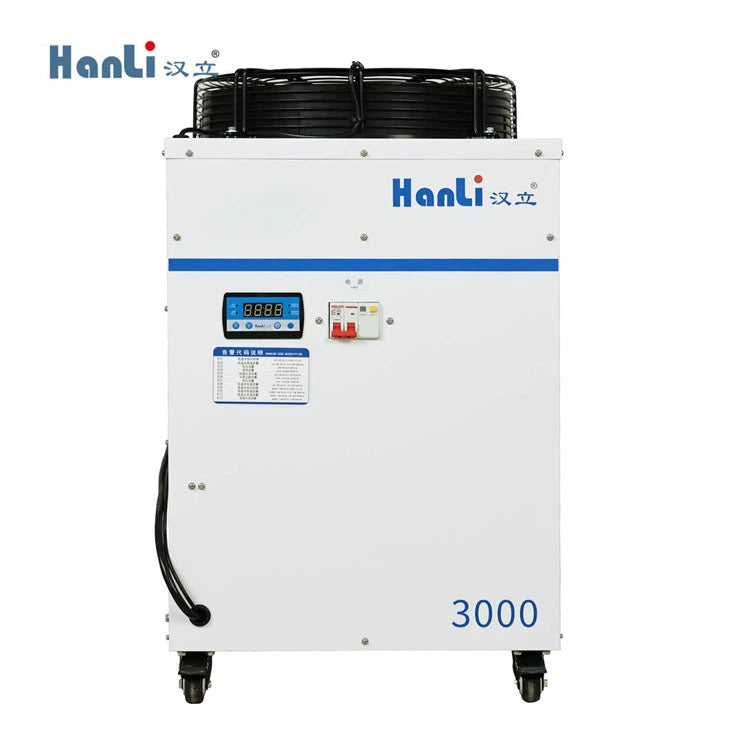

HL-3000-E-QG2/2
• Matching laser power: 3kW
• Power supply: 380V / 3-phase / 60Hz
• Rated machine power: 4.0kW
• Pump flow: 3m³/h
• Pump lift: 45m
• Tank capacity: 21L
• Net weight: 56kg
• Dimensions: 650 × 500 × 920mm

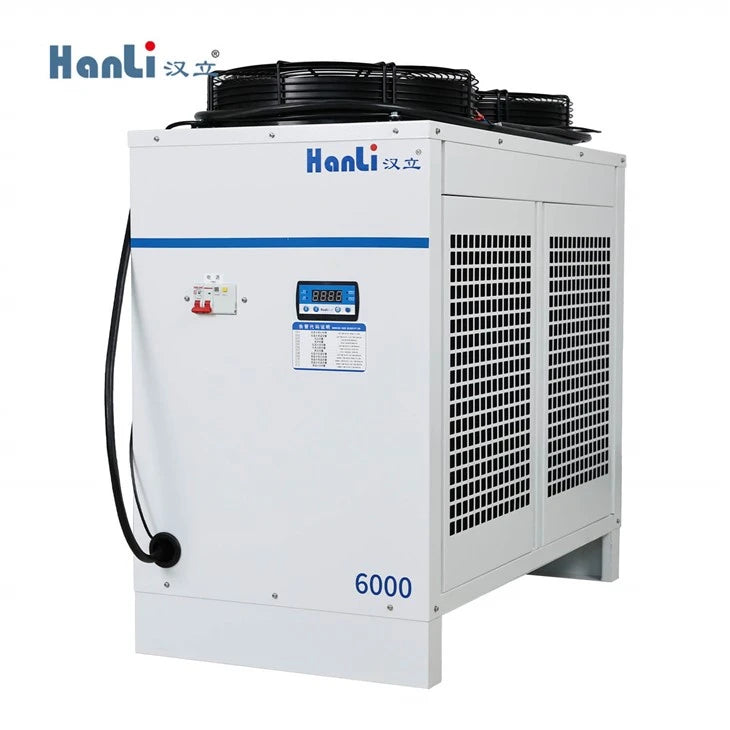

HL-6000-E-QG2/2
• Matching laser power: 6kW
• Power supply: 380V / 3-phase / 60Hz
• Rated machine power: 11kW
• Pump flow: 4m³/h
• Pump lift: 48m
• Tank capacity: 42L
• Net weight: 90kg
• Dimensions: 790 × 610 × 1070mm

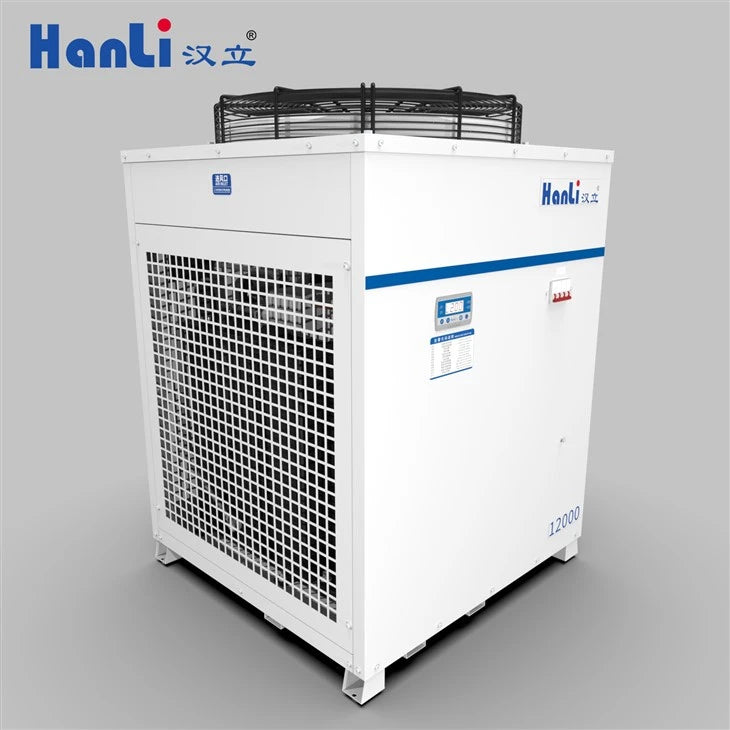

HL-12000-E-QG2/2
• Matching laser power: 12kW
• Power supply: 380V / 3-phase / 60Hz
• Rated machine power: 19kW
• Pump flow: 8m³/h
• Pump lift: 54m
• Tank capacity: 55L
• Net weight: 132kg
• Dimensions: 710 × 840 × 1060mm

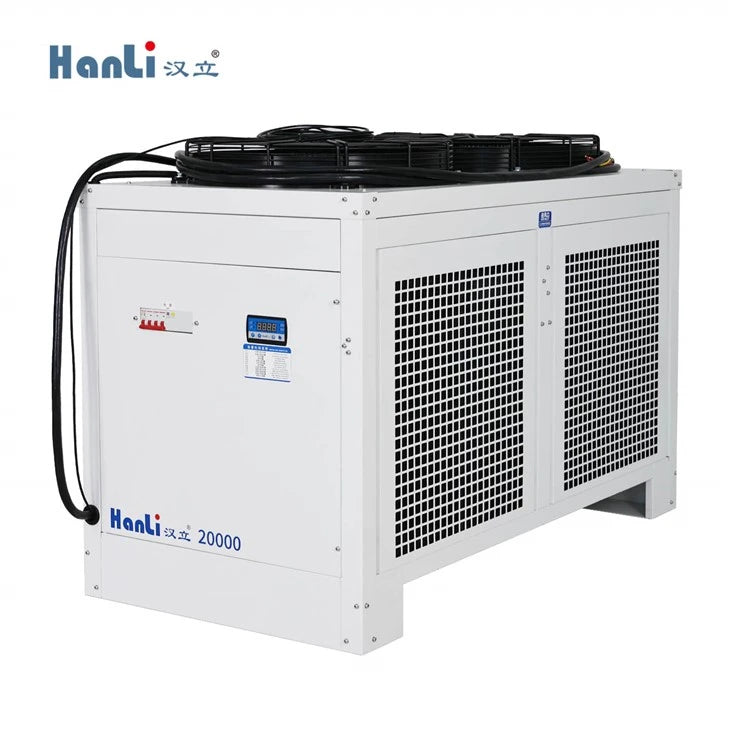

HL-20000-E-QG2/2
• Matching laser power: 20kW
• Power supply: 380V / 3-phase / 60Hz
• Rated machine power: 28kW
• Pump flow: 12m³/h
• Pump lift: 63m
• Tank capacity: 140L
• Net weight: 239kg
• Dimensions: 1530 × 750 × 1150mm

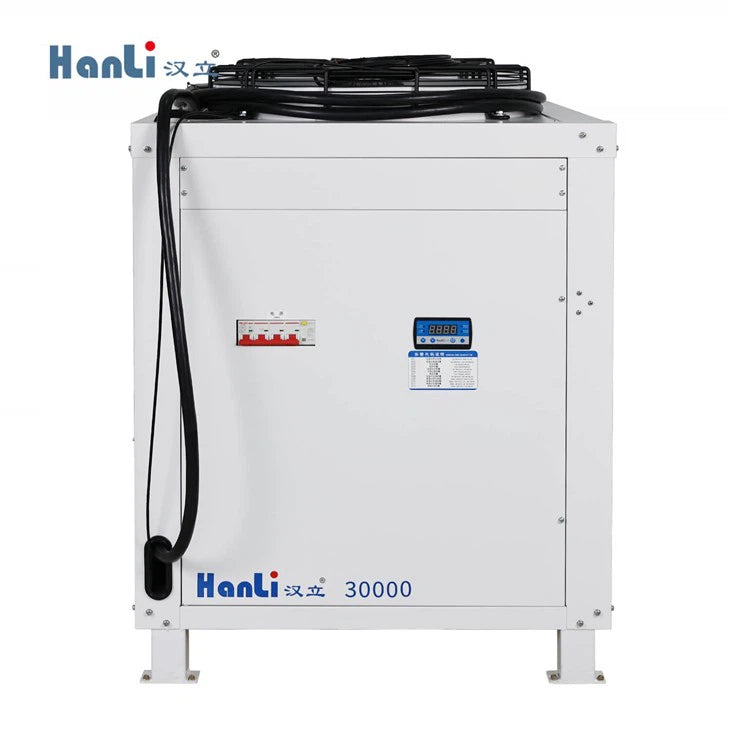

HL-30000-E-QG2/2
• Matching laser power: 30kW
• Power supply: 380V / 3-phase / 60Hz
• Rated machine power: 37kW
• Pump flow: 20m³/h
• Pump lift: 53m
• Tank capacity: 270L
• Net weight: 375kg
• Dimensions: 2090 × 930 × 1245mm

IMPORTANT
Confirm laser power, machine configuration, coolant requirements and electrical service before ordering. Contact Luminary Industrial Supply for model matching and shipping arrangements.
